Plotting an illness-death-model.

Plotting an illness-death-model using plot.Hist.

Usage

plotIllnessDeathModel(stateLabels, style = 1, recovery = FALSE, ...)

Arguments

stateLabels

Labels for the three boxes.

style

Either 1 or anything else, switches the orientation of the graph. Hard to explain in words, see examples.

recovery

Logical. If TRUE there will be an arrow from the illness state to the initial state.

...

Arguments passed to plot.Hist.

See also

plotCompetingRiskModel, plot.Hist

Author

Thomas Alexander Gerds <[email protected]>

Examples

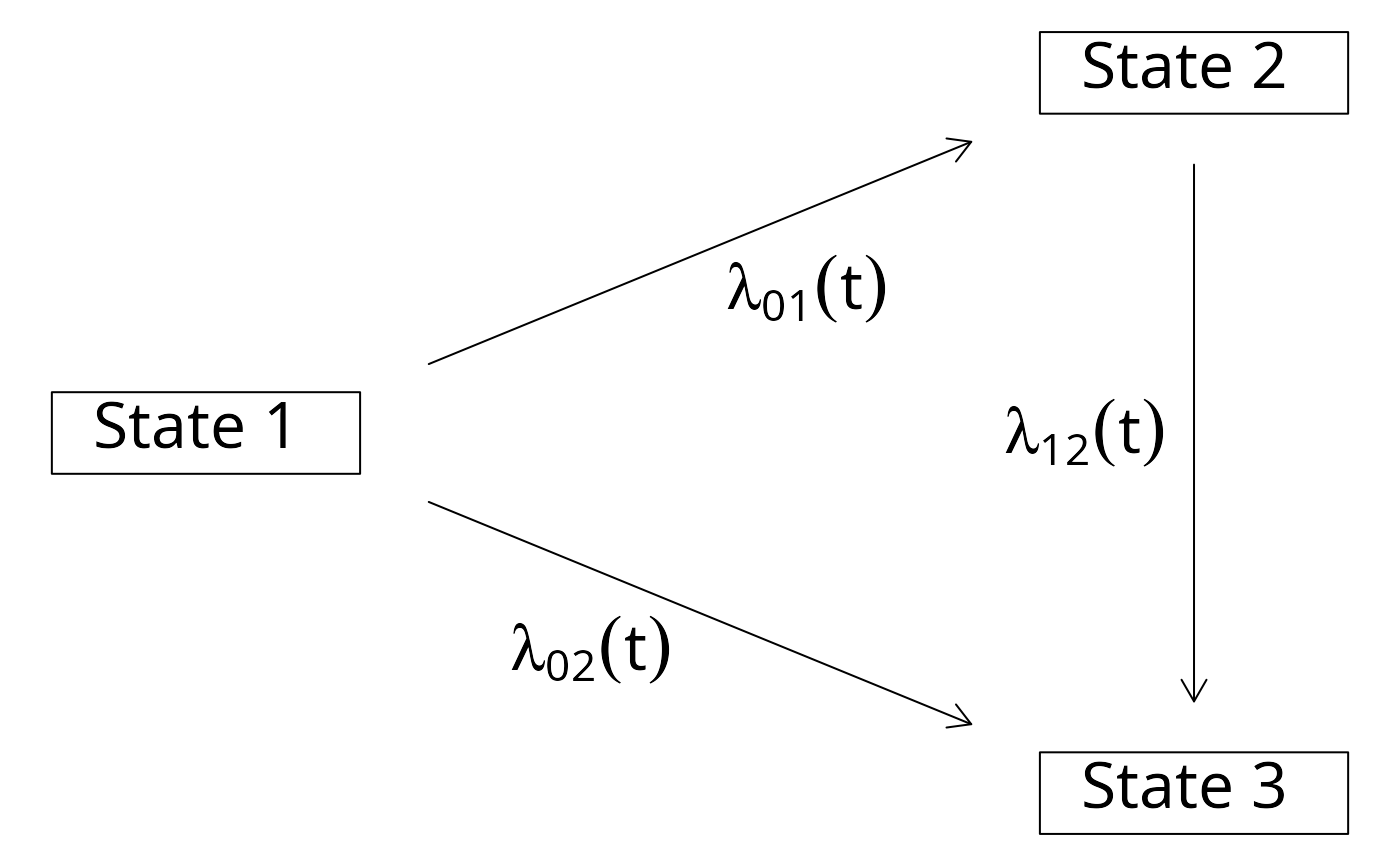

plotIllnessDeathModel()
#> Warning: The dimension of the boxes may depend on the current graphical device
#> in the sense that the layout and centering of text may change when you resize the graphical device and call the same plot.

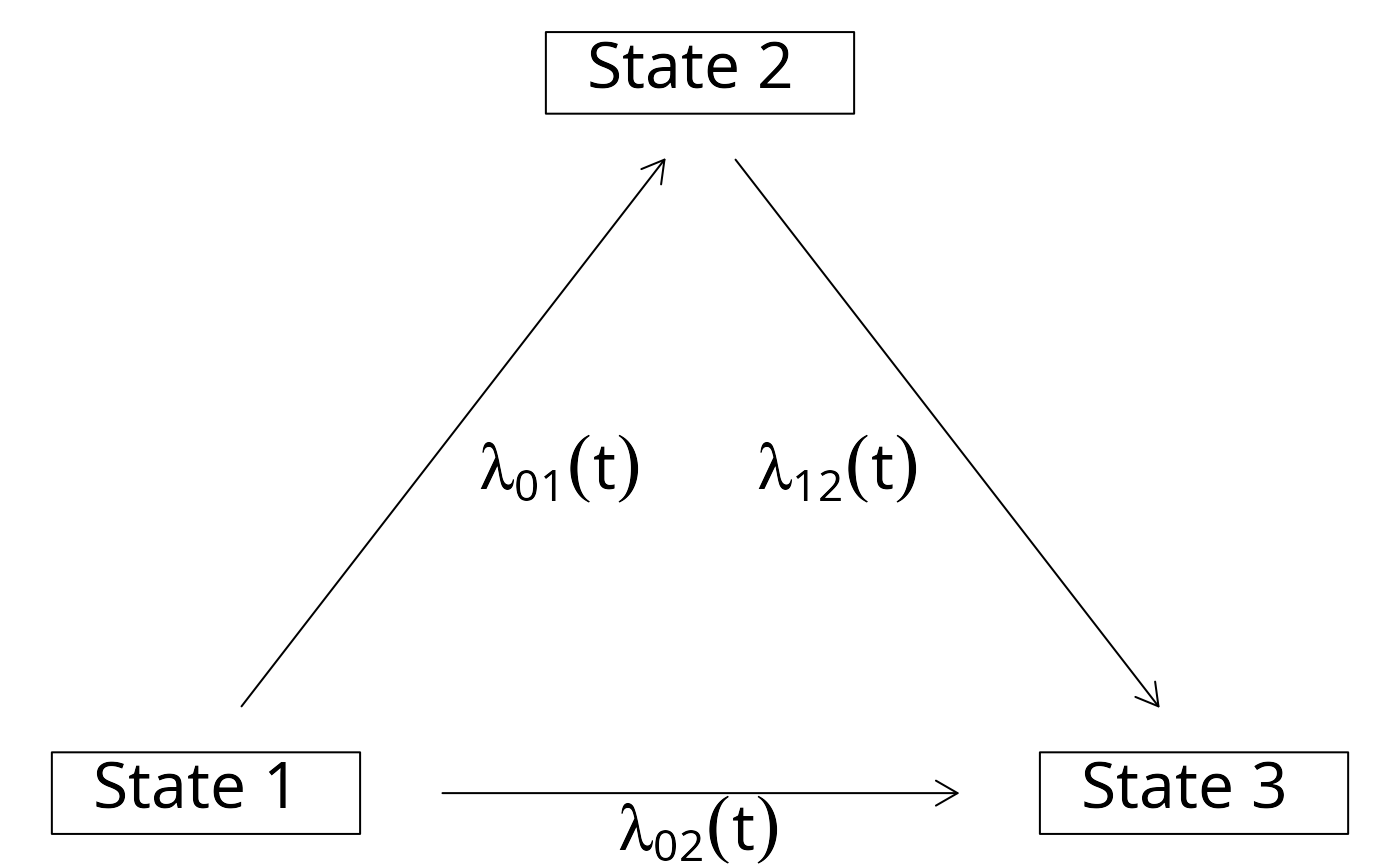

plotIllnessDeathModel(style=2)
#> Warning: The dimension of the boxes may depend on the current graphical device
#> in the sense that the layout and centering of text may change when you resize the graphical device and call the same plot.

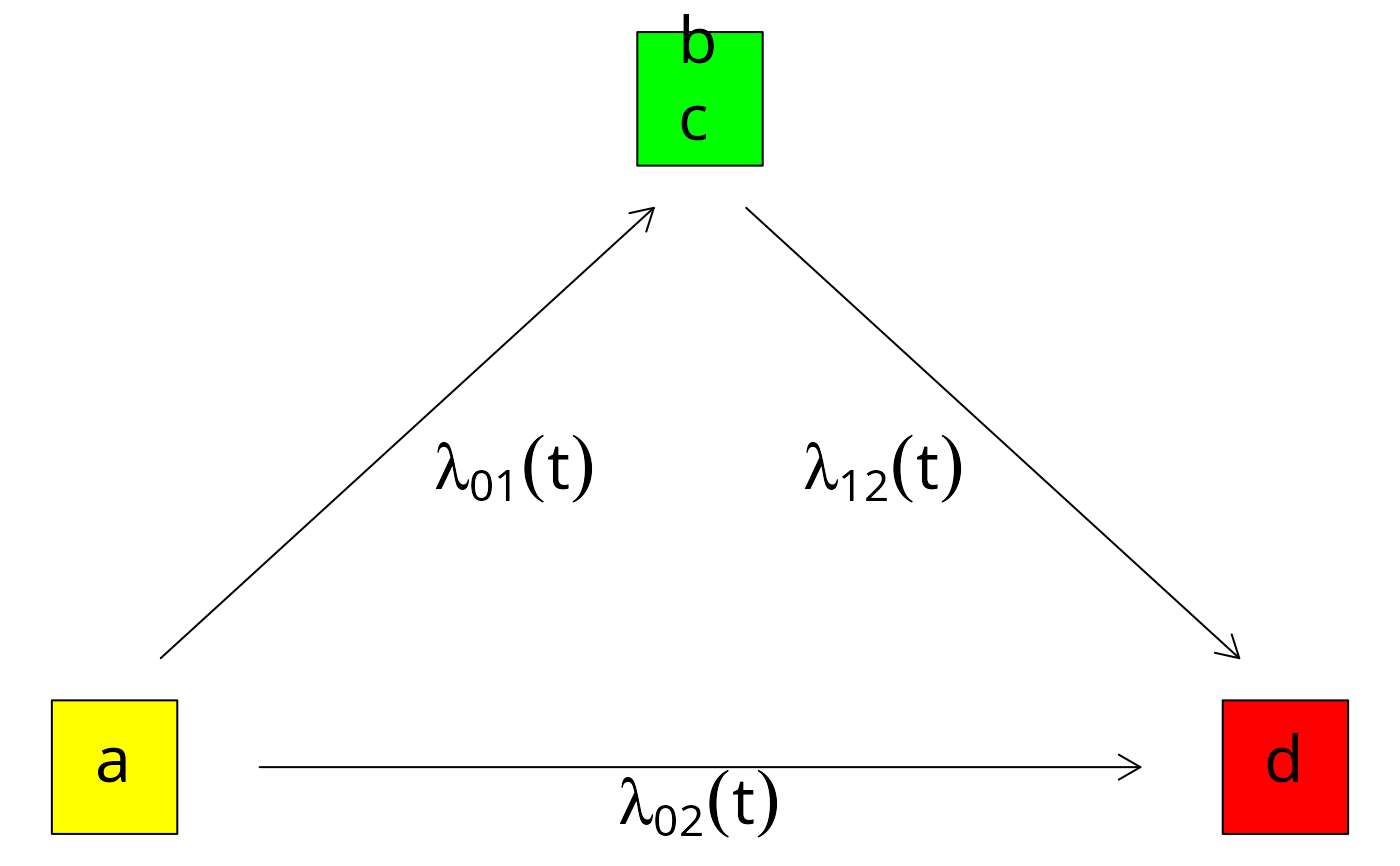

plotIllnessDeathModel(style=2,
                      stateLabels=c("a","b\nc","d"),
                      box1.col="yellow",
                      box2.col="green",
                      box3.col="red")
#> Warning: The dimension of the boxes may depend on the current graphical device
#> in the sense that the layout and centering of text may change when you resize the graphical device and call the same plot.
