Detect clumps

Detect clumps (patches) of connected cells. Each clump gets a unique ID. NA and zero are used as background values (i.e. these values are used to separate clumps). You can use queen's or rook's case, using the directions argument. For larger files that are processed in chunks, the highest clump number is not necessarily equal to the number of clumps (unless you use argument gaps=FALSE).

Usage

# S4 method for class 'RasterLayer'
clump(x, filename="", directions=8, gaps=TRUE, ...)

Arguments

x

RasterLayer

filename

Character. Filename for the output RasterLayer (optional)

directions

Integer. Which cells are considered adjacent? Should be 8 (Queen's case) or 4 (Rook's case)

gaps

Logical. If TRUE (the default), there may be 'gaps' in the chunk numbers (e.g. you may have clumps with IDs 1, 2, 3 and 5, but not 4). If it is FALSE, these numbers will be recoded from 1 to n (4 in this example)

...

Additional arguments as for writeRaster

Note

This function requires that the igraph package is available.

Value

RasterLayer

Author

Robert J. Hijmans and Jacob van Etten

Examples

r <- raster(ncols=12, nrows=12)
set.seed(0)
values(r) <- round(runif(ncell(r))*0.7 )
rc <- clump(r)
#> Loading required namespace: igraph
freq(rc)
#>       value count
#>  [1,]     1     1
#>  [2,]     2    12
#>  [3,]     3     2
#>  [4,]     4    10
#>  [5,]     5     1
#>  [6,]     6     3
#>  [7,]     7     1
#>  [8,]     8     2
#>  [9,]     9     4
#> [10,]    10     2
#> [11,]    11     1
#> [12,]    12     1
#> [13,]    NA   104

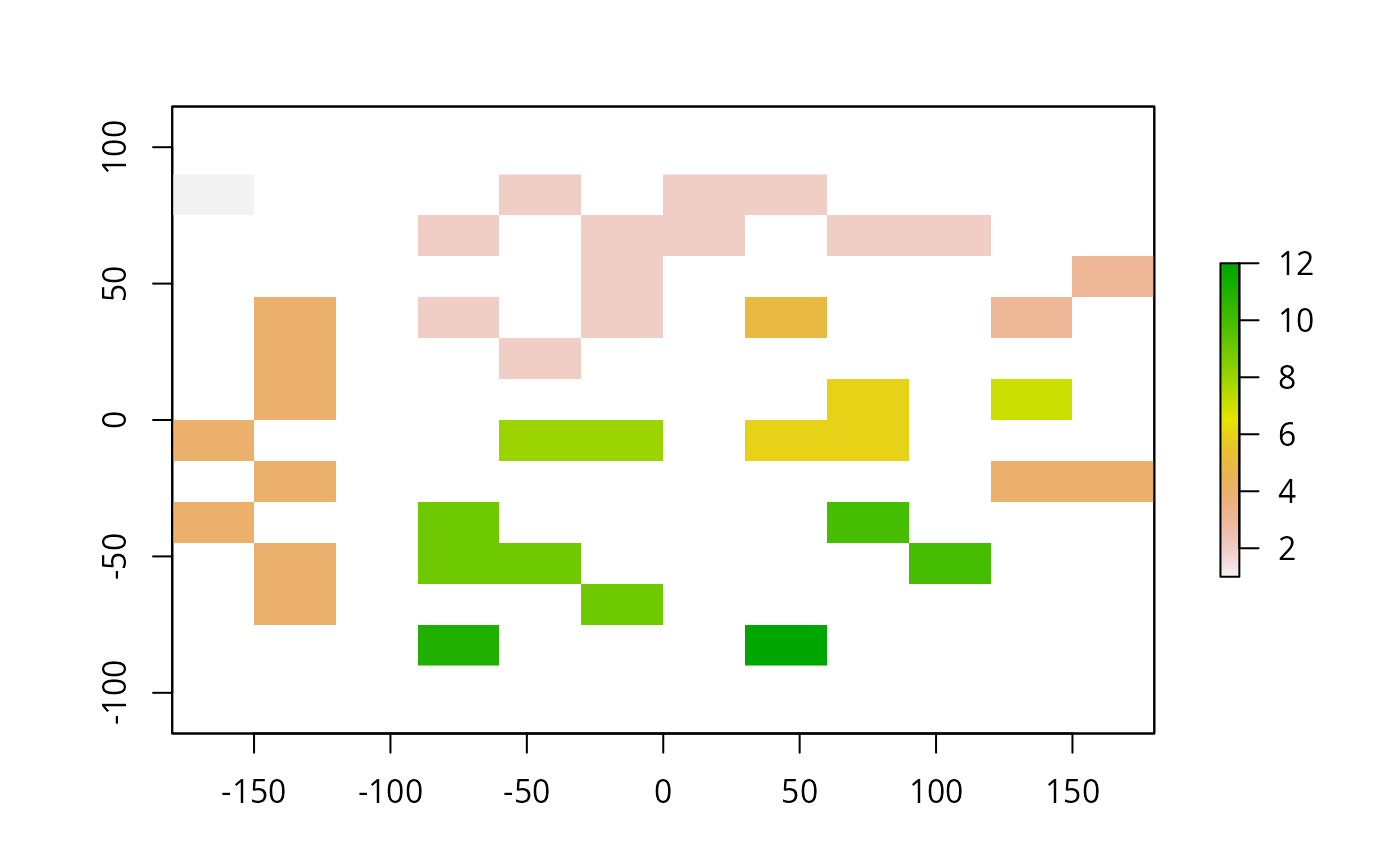

plot(rc)
