QQ plots of ETA and residuals

QQ plots of the ETA and model residuals.

Usage

prm_qq(
  xpdb,
  mapping = NULL,
  drop_fixed = TRUE,
  type = "p",
  title = "QQ plot of parameters | @run",
  subtitle = "Based on @nind individuals",
  caption = "@dir",
  tag = NULL,
  log = NULL,
  guide = TRUE,
  facets,
  .problem,
  quiet,
  ...
)

eta_qq(
  xpdb,
  mapping = NULL,
  drop_fixed = TRUE,
  type = "p",
  title = "QQ plot of etas | @run",
  subtitle = "Based on @nind individuals, Eta shrink: @etashk",
  caption = "@dir",
  tag = NULL,
  log = NULL,
  guide = TRUE,
  facets,
  .problem,
  quiet,
  ...
)

res_qq(
  xpdb,
  mapping = NULL,
  res = "CWRES",
  type = "p",
  title = "QQ plot of @sample | @run",
  subtitle = "Based on @nobs observations",
  caption = "@dir",
  tag = NULL,
  log = NULL,
  guide = TRUE,
  facets,
  .problem,
  quiet,
  ...
)

cov_qq(
  xpdb,
  mapping = NULL,
  drop_fixed = TRUE,
  type = "p",
  title = "QQ plot of continuous covariates | @run",
  subtitle = "Based on @nind individuals",
  caption = "@dir",
  tag = NULL,
  log = NULL,
  guide = TRUE,
  facets,
  .problem,
  quiet,
  ...
)

Arguments

xpdb: An xpose database object.
mapping: List of aesthetics mappings to be used for the xpose plot (e.g. point_color).
drop_fixed: Should columns that only have a single unique value (i.e. fixed) be dropped.
type: String setting the type of plot. Can only be points 'p'.
title: Plot title. Use NULL to remove.
subtitle: Plot subtitle. Use NULL to remove.
caption: Page caption. Use NULL to remove.
tag: Plot identification tag. Use NULL to remove.
log: String assigning logarithmic scale to axes, can be either ”, 'x', y' or 'xy'.
guide: Should the guide (e.g. reference line) be displayed.
facets: Either a character string to use facet_wrap_paginate or a formula to use facet_grid_paginate.
.problem: The $problem number to be used. By default returns the last estimation problem.
quiet: Logical, if FALSE messages are printed to the console.
...: Any additional aesthetics to be passed on xplot_scatter.
res: Only used for res_qq. Defines the type of residual to be used. Default is "CWRES".

Layers mapping

Plots can be customized by mapping arguments to specific layers. The naming convention is layer_option where layer is one of the names defined in the list below and option is any option supported by this layer e.g. point_color = 'blue', etc.

point: options to geom_point
guide: options to geom_abline
xscale: options to scale_x_continuous or scale_x_log10
yscale: options to scale_y_continuous or scale_y_log10

Faceting

Every xpose plot function has built-in faceting functionalities. Faceting arguments are passed to the functions facet_wrap_paginate when the facets argument is a character string (e.g. facets = c('SEX', 'MED1')) or facet_grid_paginate when facets is a formula (e.g. facets = SEX~MED1). All xpose plot functions accept all the arguments for the facet_wrap_paginate and facet_grid_paginate functions e.g. dv_vs_ipred(xpdb_ex_pk, facets = SEX~MED1, ncol = 3, nrow = 3, page = 1, margins = TRUE, labeller = 'label_both').

Faceting options can either be defined in plot functions (e.g. dv_vs_ipred(xpdb_ex_pk, facets = 'SEX')) or assigned globally to an xpdb object via the xp_theme (e.g. xpdb <- update_themes(xpdb_ex_pk, xp_theme = list(facets = 'SEX'))). In the latter example all plots generate from this xpdb will automatically be stratified by `SEX`.

By default, some plot functions use a custom stratifying variable named `variable`, e.g. eta_distrib(). When using the facets argument, `variable` needs to be added manually e.g. facets = c('SEX', 'variable') or facets = c('SEX', 'variable'), but is optional, when using the facets argument in xp_theme variable is automatically added whenever needed.

Template titles

Template titles can be used to create highly informative diagnostics plots. They can be applied to any plot title, subtitle, caption and tag. Template titles are defined via a single string containing key variables staring with a `@` (e.g. `@ofv`) which will be replaced by their actual value when rendering the plot. For example `'@run, @nobs observations in @nind subjects'` would become `'run001, 1022 observations in 74 subjects'`. The available key variables are listed under template_titles.

Examples

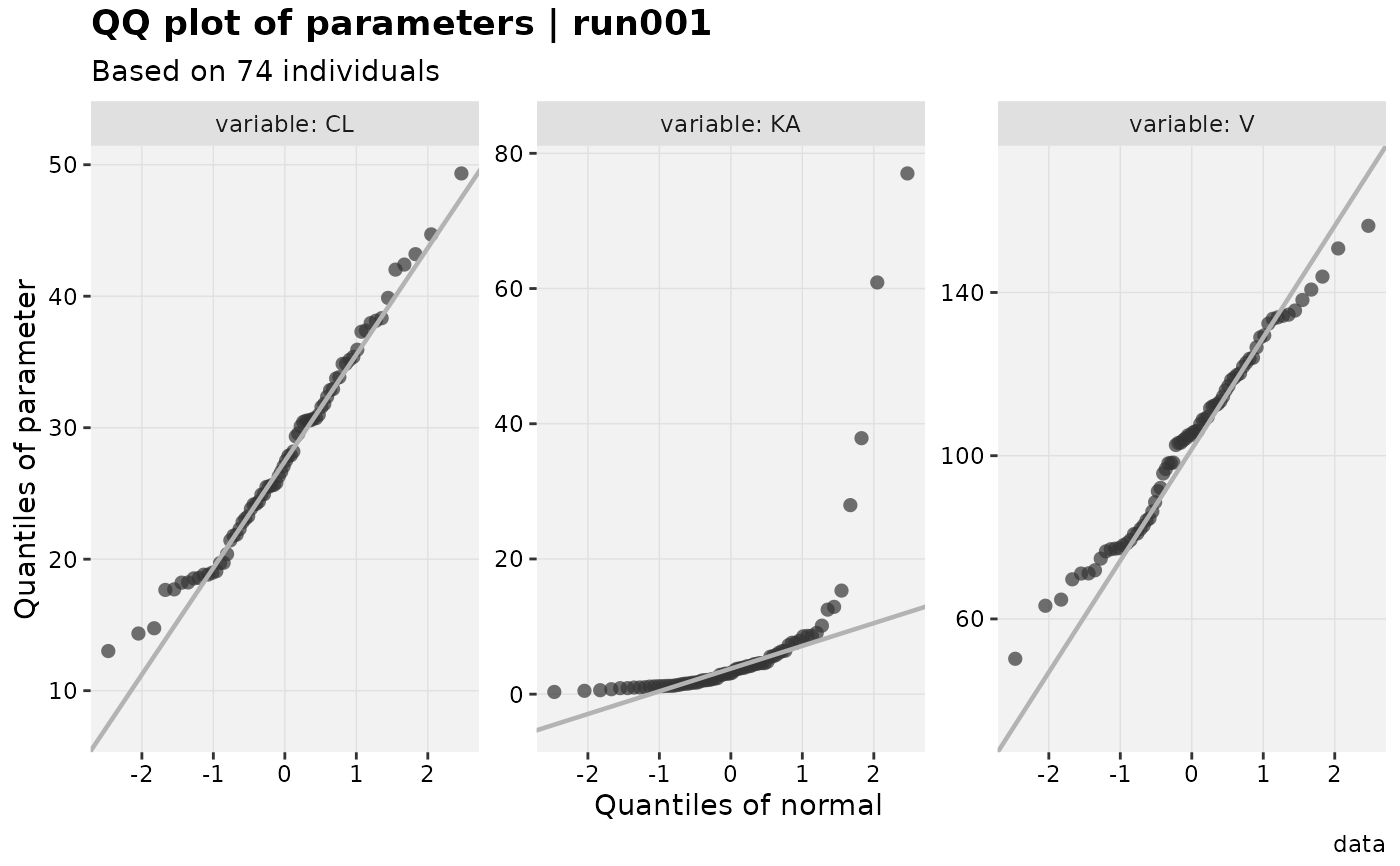

# QQ plot of parameters
prm_qq(xpdb_ex_pk)
#> Dropped fixed variables ALAG1.
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Tidying data by ID, SEX, MED1, MED2, DOSE ... and 23 more variables

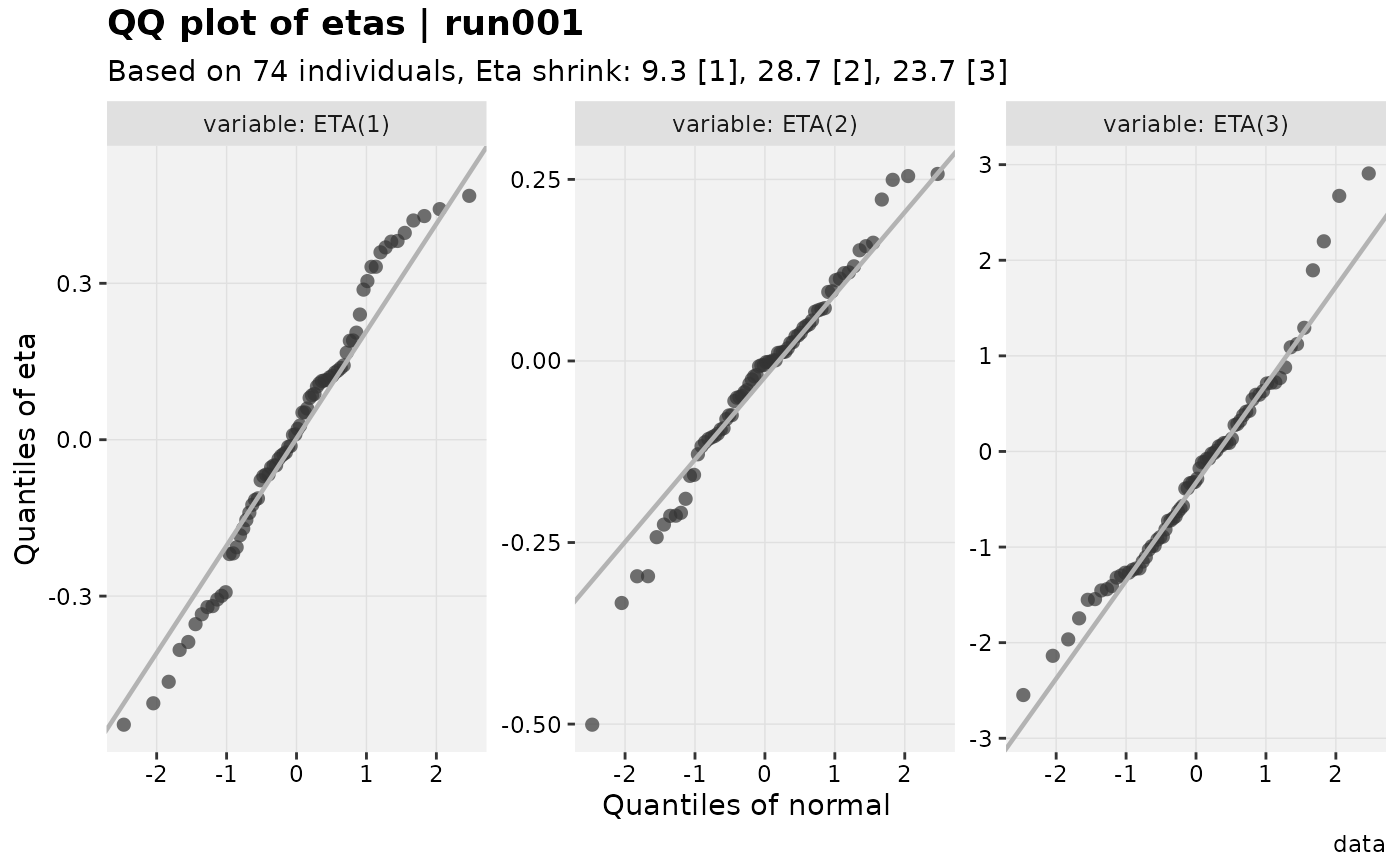

# QQ plot of eta
eta_qq(xpdb_ex_pk)
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Tidying data by ID, SEX, MED1, MED2, DOSE ... and 23 more variables

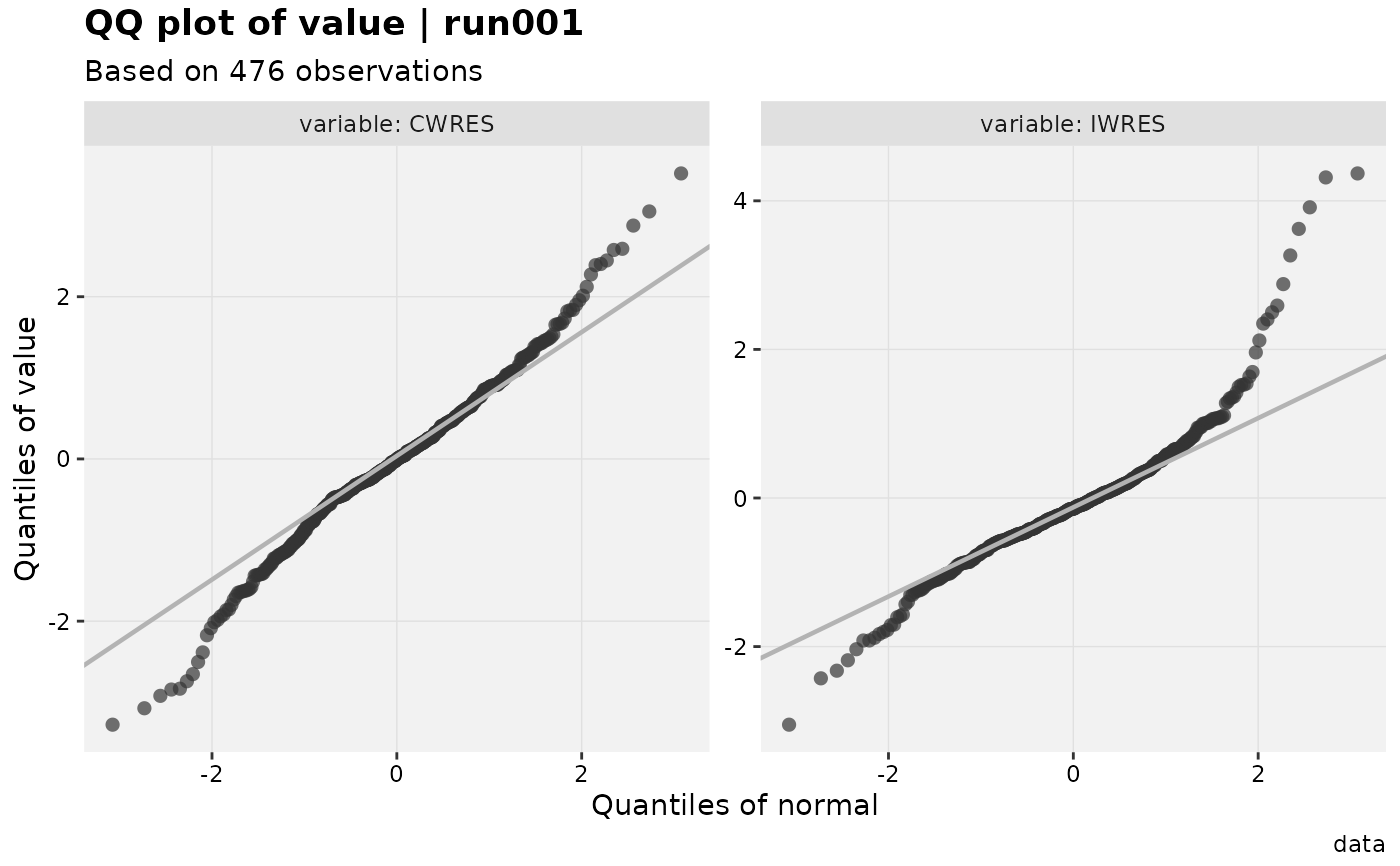

# QQ plot of residuals
res_qq(xpdb_ex_pk, res = c('IWRES', 'CWRES'))
#> Using data from $prob no.1
#> Filtering data by EVID == 0
#> Tidying data by ID, SEX, MED1, MED2, DOSE ... and 24 more variables

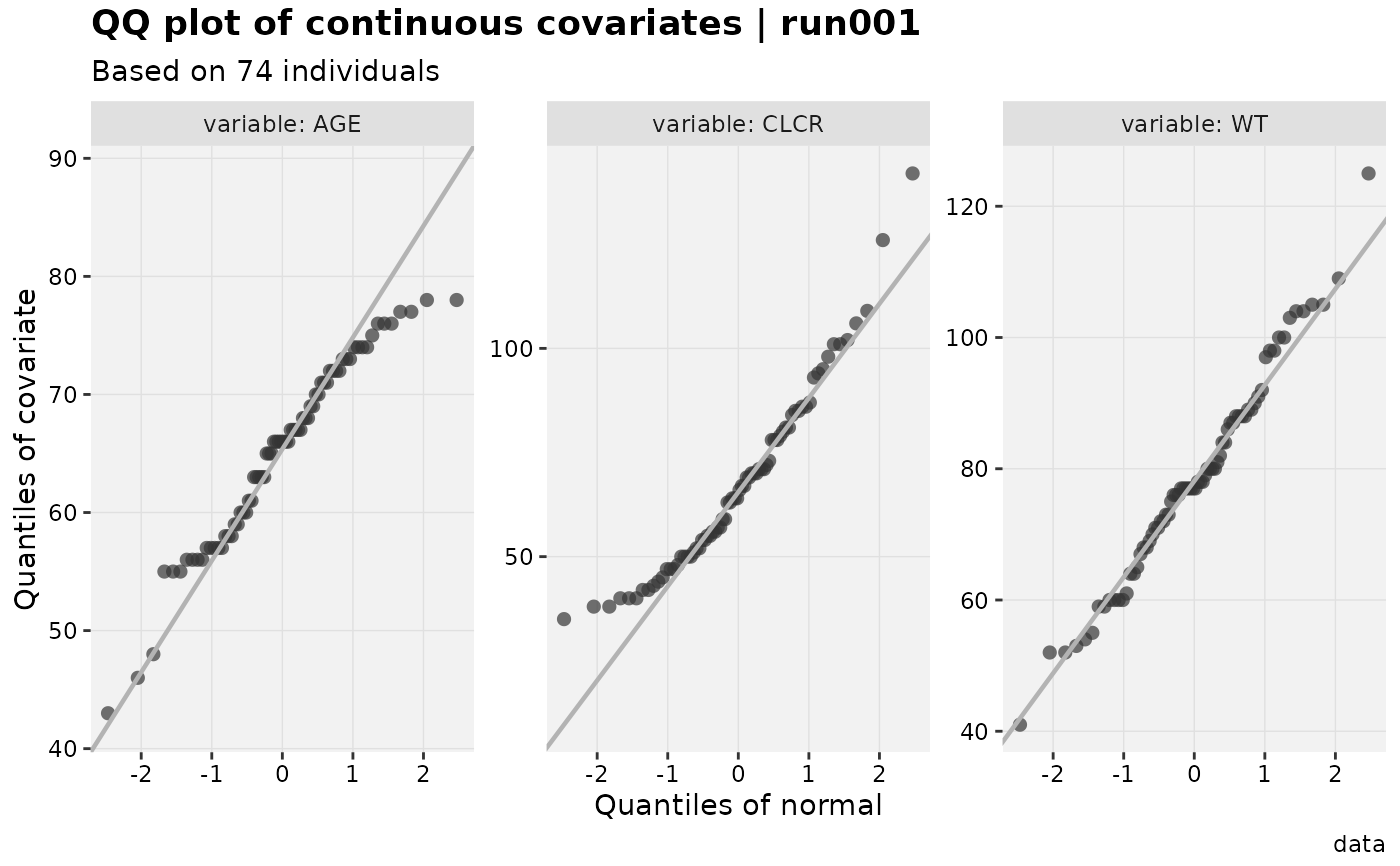

# QQ plot of continuous covariates
cov_qq(xpdb_ex_pk)
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Tidying data by ID, SEX, MED1, MED2, DOSE ... and 23 more variables
